Whole-House Underfloor Heating: A Practical UK Guide

The short answer

Whole-house underfloor heating is usually a wet, hydronic system rather than a collection of electric mats. It can work well in a new build or major renovation, especially when you need a low-temperature heat source, plenty of wall space or a system that works well with a heat pump.

It isn't automatically the best option. A poorly insulated house, complicated existing floors or a need for fast response can make radiators the simpler and cheaper choice.

Start with the building, not the product. Work out the heat loss of each room, decide how you want to use the home, then select the heat source, floor build-up, zoning and controls. Get the design right before anyone orders a manifold or lays a pipe.

Is whole-house UFH right for your home?

Before you draw a floor plan, establish whether this is a new build, extension, major renovation or retrofit. Then decide whether you're replacing the heat source, which rooms need UFH, and whether you can accept a longer warm-up time and larger floor build-up.

For most established UK homes undergoing a major renovation, wet UFH is the more practical whole-house option. Electric UFH can work across a small house or single-storey development, but the electrical load, standing charges and operating pattern need careful thought.

Whole-house electric or wet UFH?

Electric UFH

Electric systems use resistive mats or cables. Installation is quicker and the build-up is thinner, so they can suit a small extension, a conservatory or a carefully designed low-energy home.

Across a whole house, however, you need to think about the electrical supply, consumer unit, distribution board, cable routes, protection and demand. A room heated by a 1.5kW mat may be manageable. A house with several continuously operating zones can place a serious load on the incoming supply.

Electric UFH also heats the floor directly. It can respond quickly, but the result depends on insulation, the mat layout, thermostat settings and the floor finish. A thick carpet or unsuitable underlay can reduce output and make the floor take longer to warm.

Wet UFH

Wet UFH circulates water through pipes embedded in a floor screed or fitted into a suitable panel system. The water can come from a boiler, heat pump or another low-temperature heat source.

The extra complexity is the reason many people choose wet UFH for a whole house. It requires a manifold, pump, controls, pipework, a suitable floor build-up and commissioning. In return, it can provide comfortable, even heating at lower water temperatures and has more flexibility for whole-house load management.

If you are replacing a boiler, check underfloor heating boiler compatibility before assuming that every boiler can drive the system. A conventional combi boiler, a system boiler and a heat pump have different flow-temperature and control requirements.

Start with a room-by-room heat loss calculation

A whole-house system should be designed from individual room loads. Don't estimate the entire property by multiplying floor area by a generic figure.

For every room, record:

• floor area and ceiling height;
• external walls, windows and doors;
• roof, ceiling or floor construction;
• insulation and U-values where available;
• ventilation provisions;
• adjacent room temperatures;
• thermal bridges, such as an external door threshold or balcony edge.

Add the losses through the building fabric and ventilation to get the room's design heat loss. Then compare it with the output available from the selected floor system at its chosen flow and return temperatures. Floor area divided by heat loss is not enough, because a large, well-insulated room may need less output per square metre than a smaller room with extensive glazing.

The underfloor heating heat loss calculation guide shows the method and a worked example. Have the final design checked by someone competent to work on the whole system.

Pay attention to large windows, stairwells, extract ventilation, floors over unheated spaces, extensions with different insulation, and rooms with higher internal temperatures.

Decide on zones before drawing pipework

Zoning matches the way the home is used. It also helps the heat source and controls avoid heating rooms that are empty.

A sensible starting point is a zone for each regularly used group of rooms, rather than a separate circuit for every small space. The right number depends on the heat source, pipe lengths, controls and how you use the property.

Typical arrangements include:

• living and dining spaces as separate or combined zones;
• a kitchen zone with a different schedule from bedrooms;
• bedrooms grouped by orientation and occupancy;
• a bathroom circuit with a floor sensor and suitable limit;
• a utility, hallway or workshop zone that can be switched off when nobody is there.

A wet system needs each zone to be hydraulically achievable. A long circuit may need more pump capacity, while a very short circuit may need a different balancing method. An electric system needs enough electrical capacity and a controller that can handle the connected load.

The underfloor heating zoning guide covers practical layouts, room schedules and the mistakes that cause uneven temperatures.

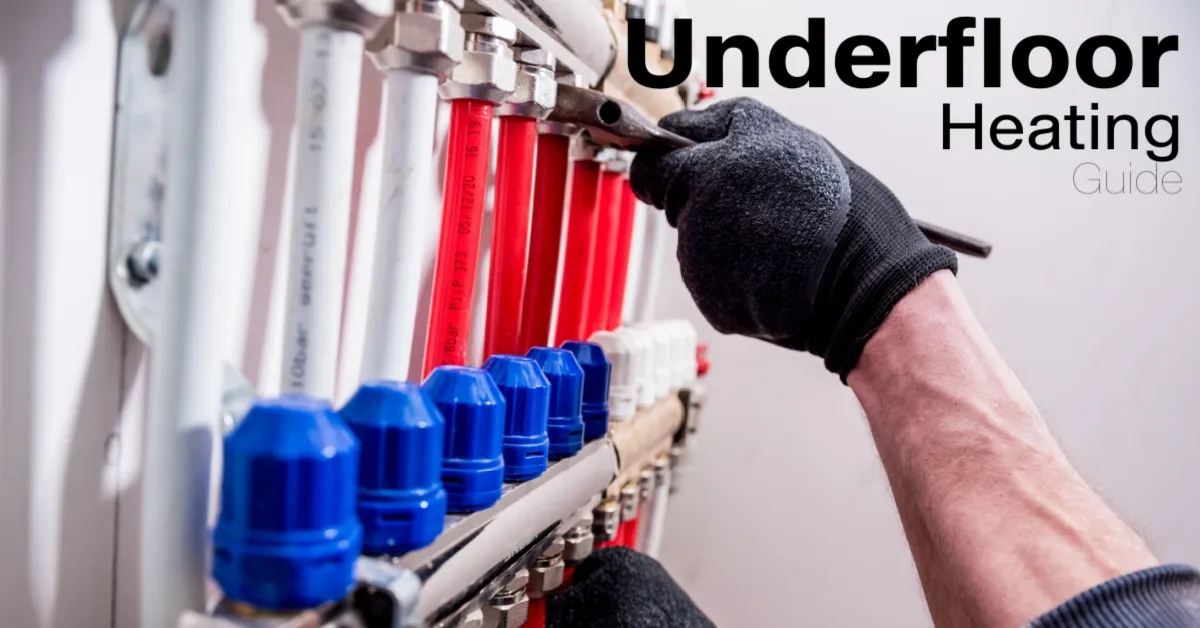

Plan the manifold and distribution

A wet system needs a manifold location that is accessible, protected from damage and close enough to the relevant pipe runs. It needs space for isolation, flushing, balancing and future servicing. Don't put it in a position where a later kitchen unit or built-in cupboard blocks access.

The manifold may feed one manifold or several smaller manifolds if the house is large or the pipe runs are divided into distinct areas. Record every circuit: room, length, pipe size, target flow, valve setting and connected control.

The manifold also needs the correct pump, actuators, air vent, gauges, valves and electrical supply. These components must be matched to the heat source and the pressure-loss calculations. A boiler may deliver plenty of heat but still be unsuitable for long, narrow circuits if the flow temperature and pump arrangement don't match.

Choose the heat source first

The heat source sets the temperature the floor has to produce. Get that decision right before selecting pipe spacing or controls.

A boiler-fed system is a familiar option, but a modern boiler's output is not the only consideration. The important questions are flow temperature, modulation, pump control, primary and secondary circuits, hydraulic separation and whether the boiler can serve other emitters as well as UFH.

A heat pump is a strong long-term pairing for wet UFH because both can work at relatively low temperatures. That compatibility can improve seasonal efficiency, but only if the building, emitter and controls are designed together. An oversized heat pump, poor insulation or unnecessarily high flow temperatures can spoil the result.

If you're planning a heat pump, read the underfloor heating heat pumps guide and ask the designer to show the assumed flow temperature and seasonal performance assumption.

Choose the floor build-up and covering

The floor finish affects both output and response. Tile, stone and other thermally conductive finishes generally suit UFH well. Engineered timber, laminate and some vinyl products can work, but you must check the manufacturer's temperature and cycling limits. Thick carpet and underlay can significantly reduce output.

For wet UFH, the build-up normally includes suitable insulation, pipe, screed or panel support, decoupling or movement accommodation where required, adhesive or fixing, and the finished floor. Edge insulation and treatment around external thresholds help limit heat loss downwards.

An electric build-up can be thinner, but the subfloor still needs to be suitable, and the mat or cable must be protected from damage by later trades. Choose the thermostat and floor sensor around the floor finish, not after the floor is installed.

The best flooring for underfloor heating guide covers the main options and their limits.

Construction sequence matters

On a new build, the usual order is broadly:

1. Complete the structural floor and drainage.
2. Install any below-floor services and manifold pipework.
3. Install insulation and edge insulation.
4. Check pipe routes, joints and clips before covering.
5. Lay the wet pipes or electric mats.
6. Fit sensors, actuators, thermostats and wiring.
7. Install the screed, panel system or floor finish.
8. Test and commission the heating.
9. Fit final fixtures, furniture and floor coverings that could restrict heat movement.

On a retrofit, expect more investigation and disruption. Check the floor build-up, joist direction, services, ventilation, asbestos risk where relevant and whether raising the floor would affect doors, stairs, thresholds or accessibility. Decide early whether the existing floor can be retained, overlaid or needs to be replaced.

Don't allow other trades to damage concealed pipes or mats. Photograph the installation before it is covered and keep the circuit schedule with the building handover documents.

Commissioning proves the design

Commissioning is not an optional final flourish. Electric circuits need the correct electrical protection, continuity and insulation checks, thermostat and floor-sensor settings, and a controlled first heat. Wet circuits need flushing, filling, bleeding, pressure testing, pump checks, balancing and a heat-up test.

The system should be balanced rather than judged by whether one room feels warm. Record supply and return temperatures, flow rates, actuator operation, thermostat schedules and first heat-up times. The underfloor heating commissioning guide explains the checks and handover records in more detail.

Leave the owner with the system layout, circuit list, operating instructions, isolation points, warranty information and emergency contacts.

What will whole-house UFH cost?

The price depends on floor area, system type, heat source, access, floor construction, number of zones and how much of the existing heating is being replaced. A square-metre price on its own is not a useful quote.

Use broad figures for early budgeting, then ask for a room-by-room quotation. Our underfloor heating costs guide sets out the main variables. Whole-house wet UFH generally costs more than a single-room electric installation because it includes the floor preparation, manifold, pipework, controls, screed or panel system, heat-source work and commissioning.

Budget separately for:

• surveys, design and heat loss calculations;
• asbestos or structural investigations where needed;
• insulation, screed and floor levelling;
• manifold, pump, actuators and controls;
• boiler or heat pump work;
• electrical upgrades;
• floor coverings and thresholds;
• repair to adjoining finishes after construction.

A lower installation quote may omit floor preparation, balancing, a suitable pump, electrical work or commissioning. Ask each contractor to state what is included and which work is excluded.

Running costs and comfort tradeoffs

Wet UFH usually wins on whole-house running costs when it is paired with an efficient heat source and designed for low flow temperatures. Electric resistance heating is nearly one hundred per cent efficient at the point of use, but the cost of the electricity and the household peak demand can still make it expensive for continuous whole-house heating.

A wet system has a slower response. It can feel pleasant and steady, but it is not ideal for every quick-use room. Electric mats can respond faster, while radiators remain useful for rooms that need a rapid boost or where a full floor build-up is impractical.

Controls make a real difference. Schedules, room sensors, zoning, weather compensation and a sensible setback can prevent the system heating empty rooms. However, controls cannot recover heat that has already been lost through a poorly insulated floor or envelope.

When whole-house UFH is not worth it

I wouldn't push a whole-house system when:

• the floors are already finished and retrofitting would cause major disruption;
• the house has high heat loss and no plan to improve the fabric;
• the budget cannot cover design, installation and commissioning properly;
• you need rapid room-by-room heating more than low-temperature comfort;
• the chosen boiler or heat pump cannot deliver the required flow temperature and pump performance;
• the floor finish is unsuitable or the product warranty is not clear;
• only a bathroom or small extension needs heating;
• the project has no sensible access for the manifold, pipework or controls.

A mixed system can be the practical compromise. Use wet UFH in the main living areas and retain or add radiators in a hallway, bathroom or room with a high heat loss. That is not a failure. It is a sensible response to the building and how people actually live.

Final decision

Whole-house UFH earns its place when the project has the right floor structure, a sensible heat source and enough budget for proper design. The best version is not the one with the most pipe or the most zones. It's the one that meets each room's heat loss, responds to how the household uses the building and can be commissioned and maintained properly.

For UK requirements, use GOV.UK Approved Document L for energy efficiency, Approved Document F for ventilation and Approved Document P for electrical safety. These are official guidance, not a substitute for a project-specific design.
